Study of a platform allowing operators to make adjustments on an existing machine.

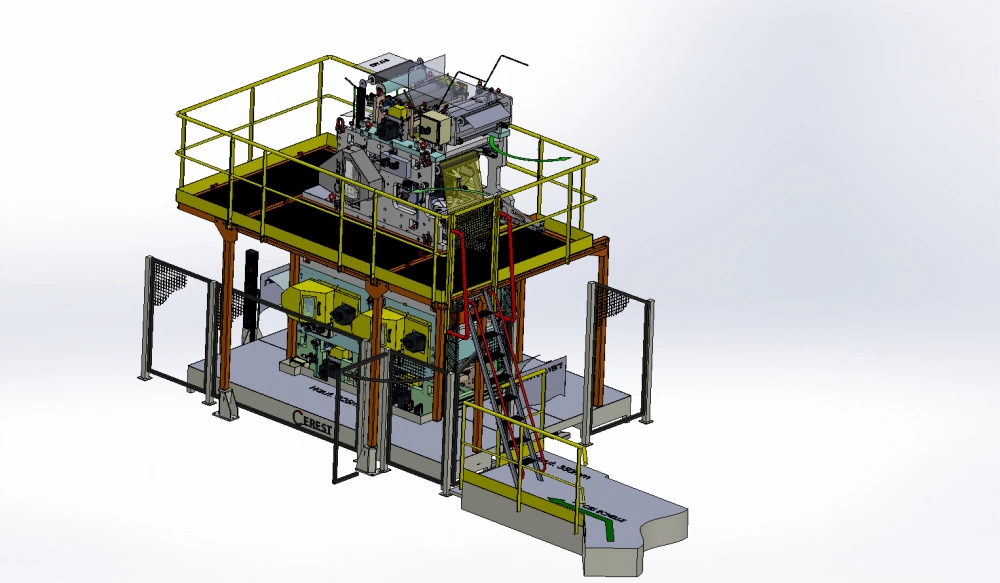

The upper access is via a retractable milling ladder.

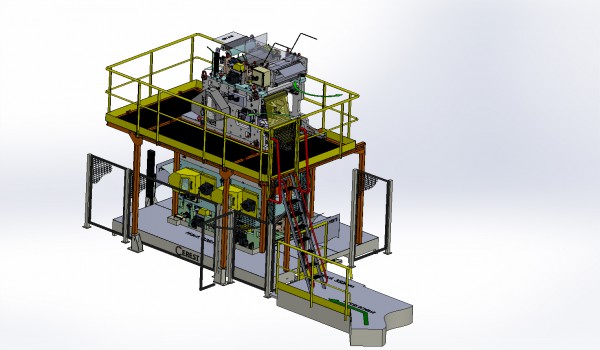

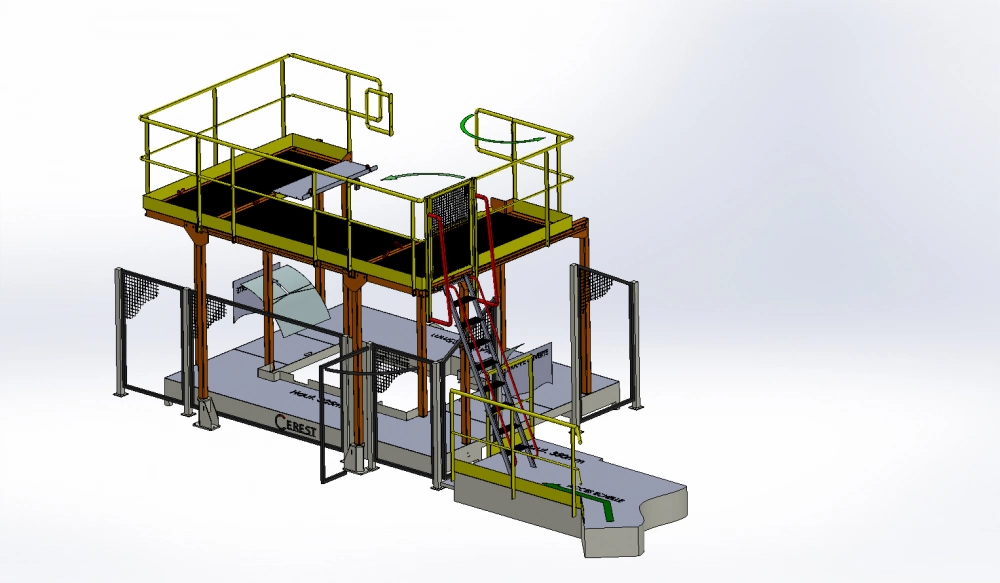

The floor is "U" shaped allowing to reach the 3 functional sides.

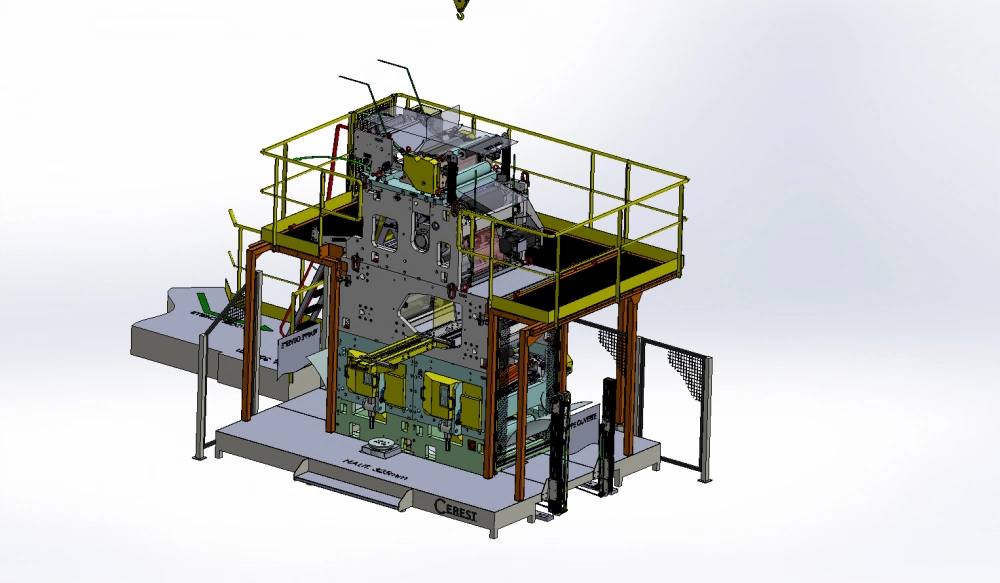

Easily dismantled (3 parts), it integrates retractable lifting rings and a "quick" fastening system.
A calculation note was made to dimension the structure and optimise its structural dimensions (operator passageways underneath).
Optimisation of the structure's cross-section by RDM calculationsDownload PDF version Reference : 3510
Project added the July 13, 2021
